Free 3D Kitchen Planner
3D Planner usage instructions
Free 3D planning design tool
Our free 3D planner is designed to allow you to visualise and design your dream kitchen. To start you enter in the dimensions of your space. From there you can choose and insert any of our wide range of cabinets. All of our colours and cabinets are available on our 3D planner, allowing you to customise your kitchen space completely. If you need help with where to start, we even have pre-made kitchen designs that you can view and edit to suit your space. Along with our range of cabinets you can also insert dishwashers, fridges and ovens and change your benchtop colour to make your 3D kitchen complete.
You can select whether you want to create new design or you want to modify the existing one.
You can choose the shape of your room. It can be a rectangle, L-shaped, have 5 sides or if you have a unique room layout you can use the custom shape option to mark out your rooms dimensions.

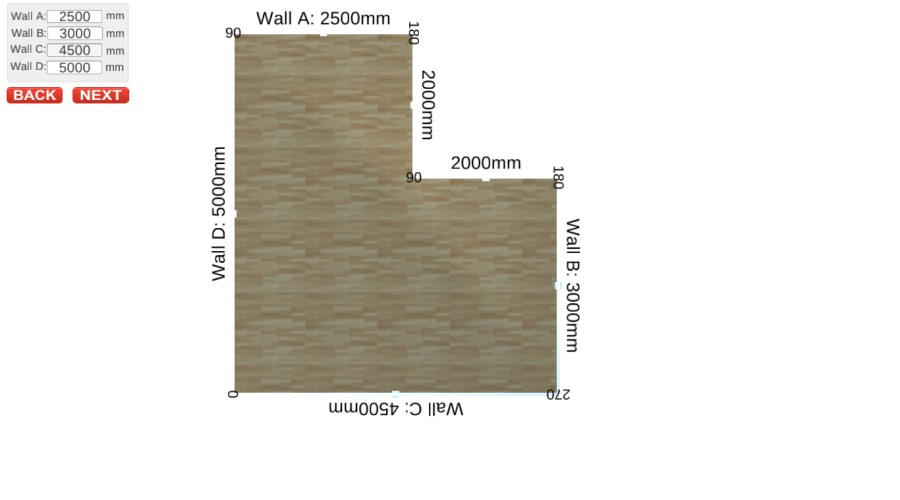

Set the dimensions for walls in your room.

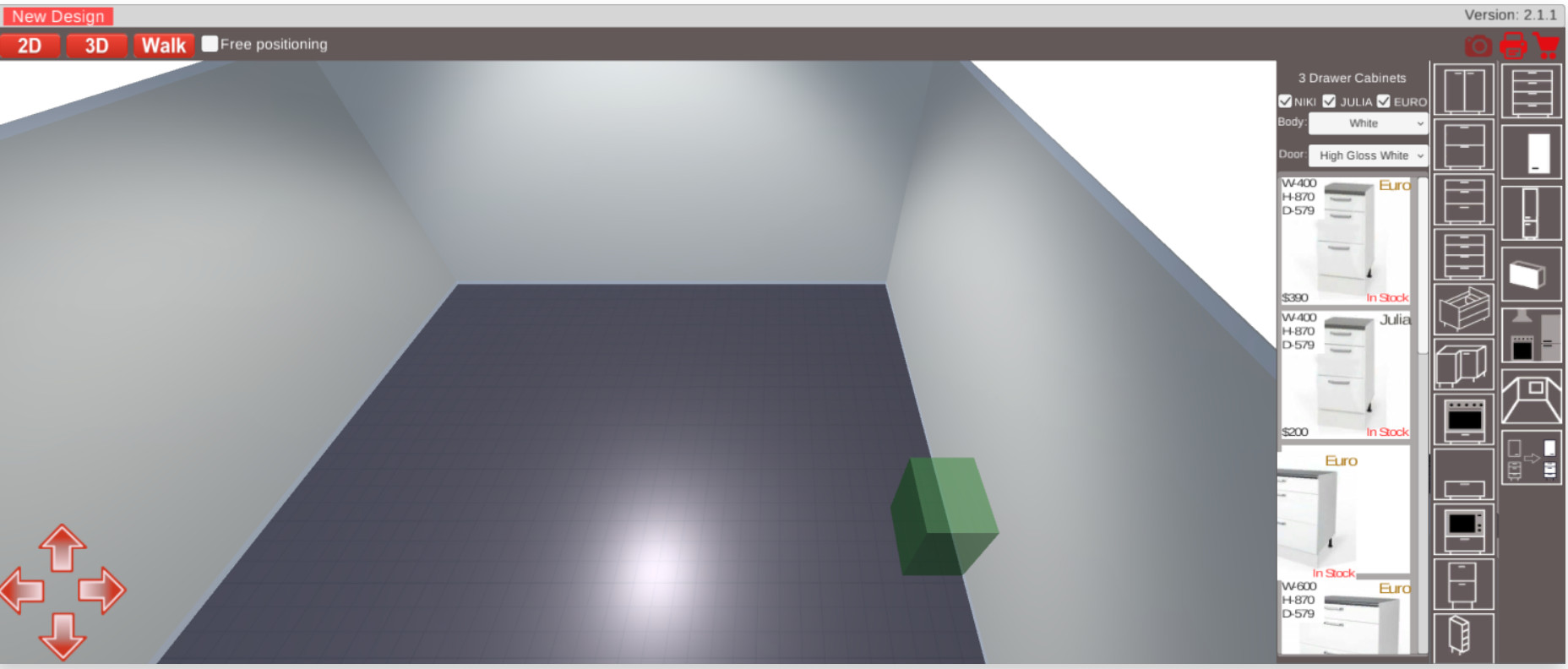

1. To open the panel with the cabinet options, click on the right-hand panel and select which cabinet you want to add to your design.
2. If you want to get a full description of the cabinet simply hover your mouses' cursor over it.

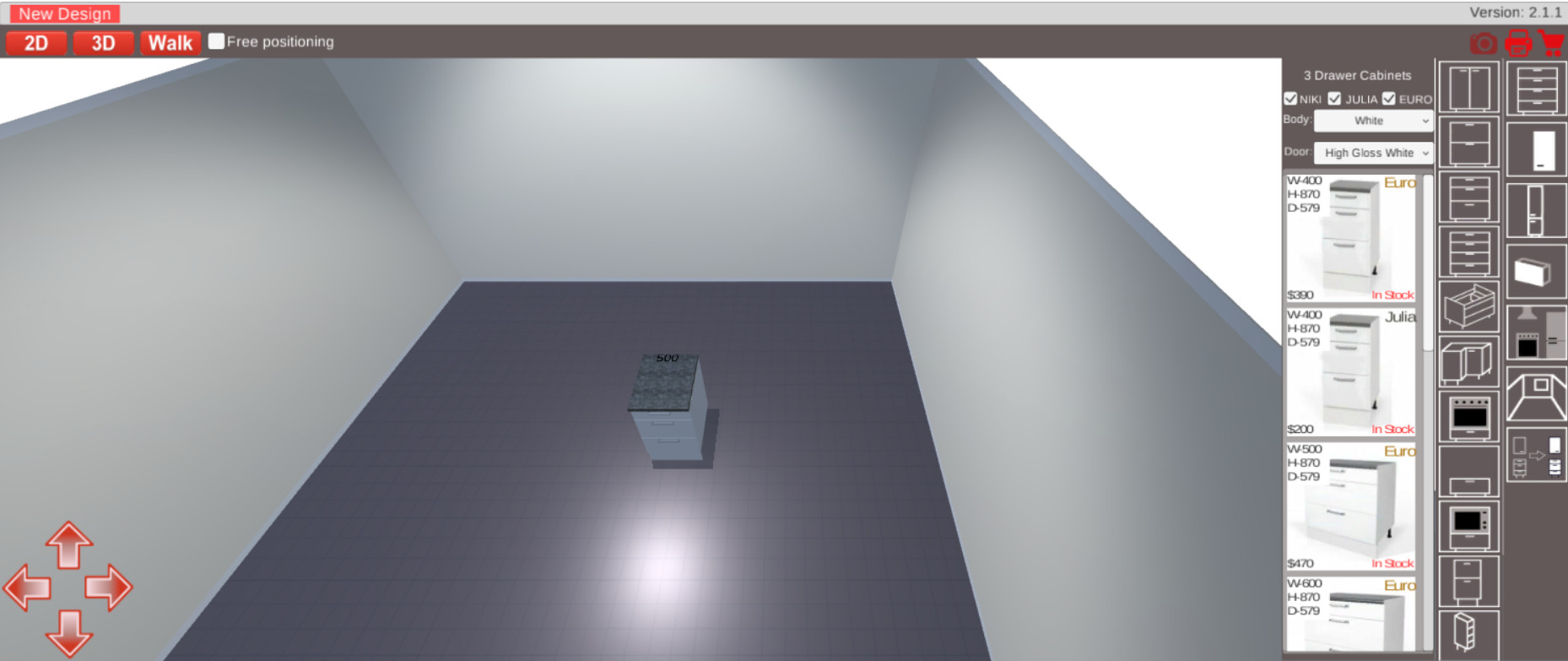

3. Move your cabinet to the desired location by dragging it with your mouse.
4. Move your cabinet to desired place by dragging it by mouse.

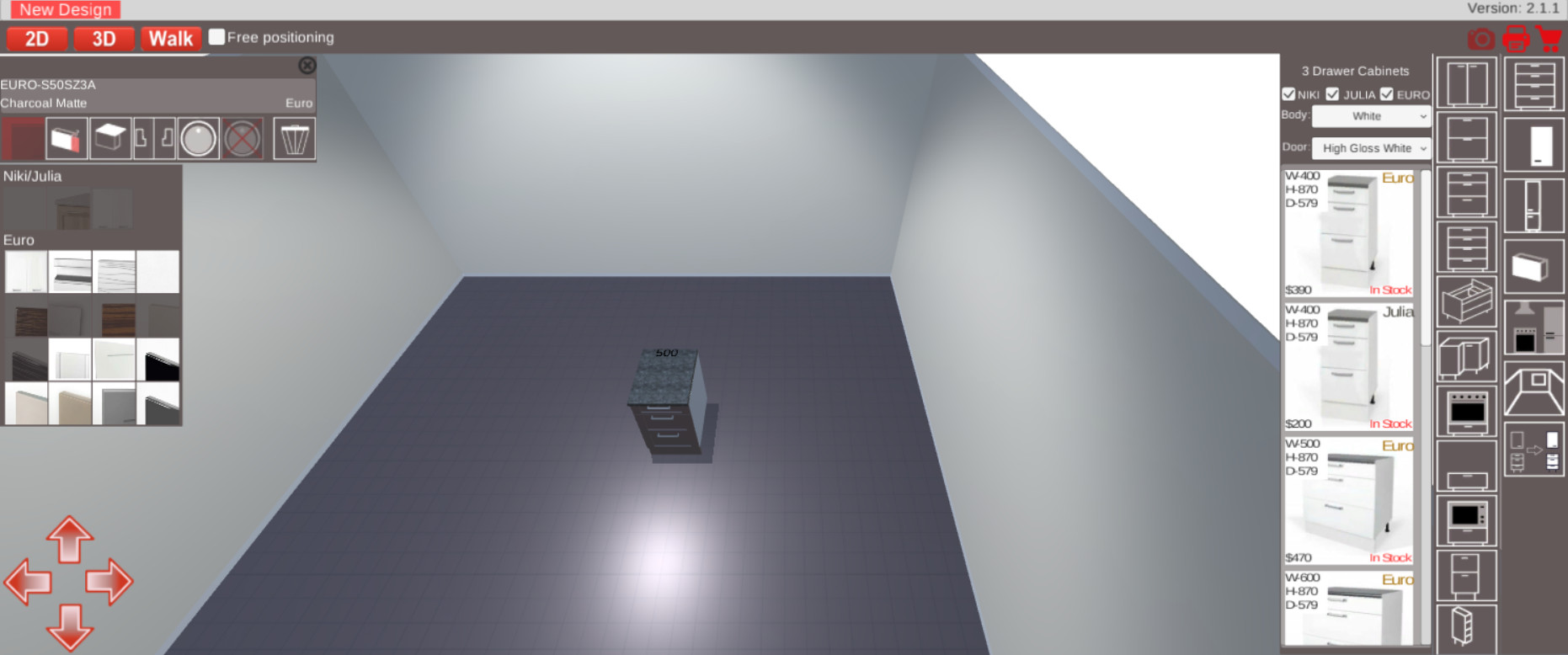

To change the colour of your cabinet(s), select your desired colour from the drop down menu shown in the right-hand panel.
To add a sink to your cabinet, select the cabinet and choose your desired sink from the top pop-up menu.
To change the benchtop colour, select a cabinet and click on the "Benchtop colour" button in the top pop-up menu.

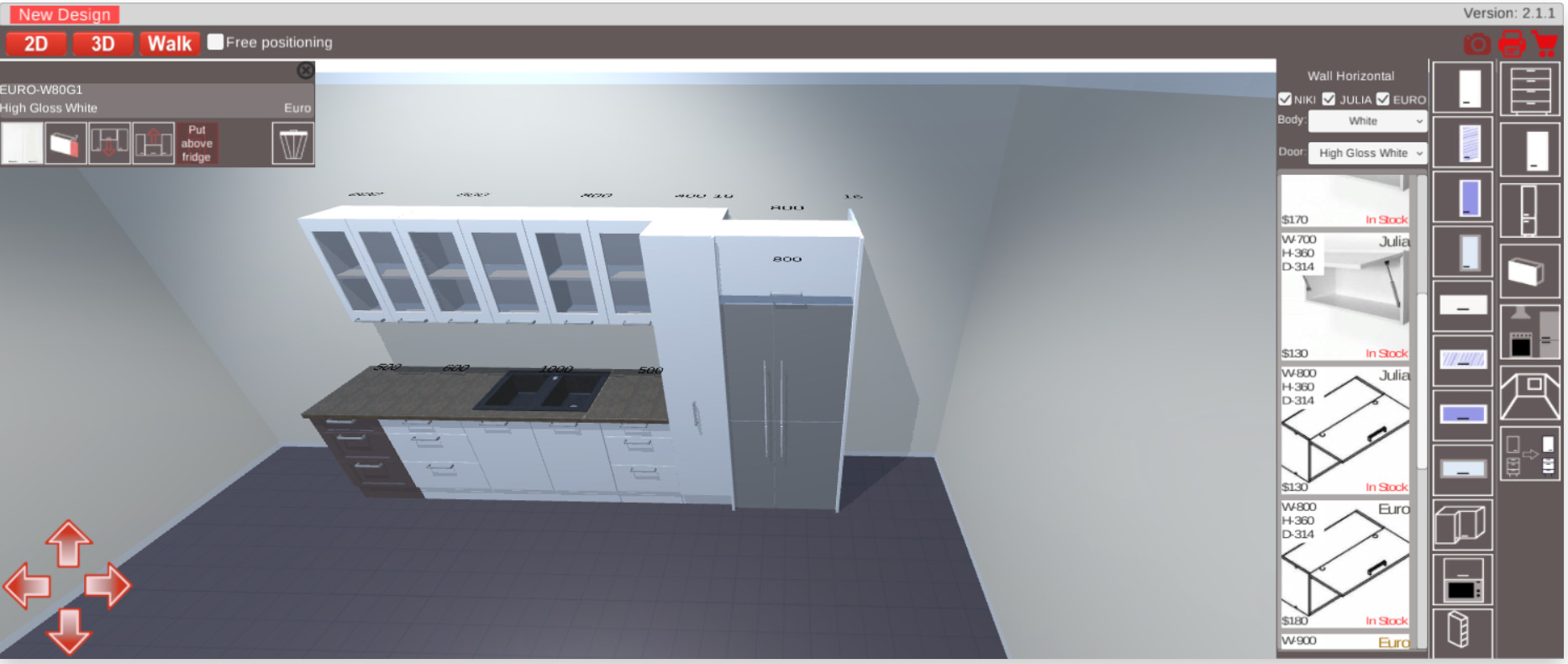

To put a horizontal wall unit above the fridge, select it and click "Put on Fridge".
To change the size of a back panel, select the desired panel and click on the "Change panel size" button in the top pop-up menu.

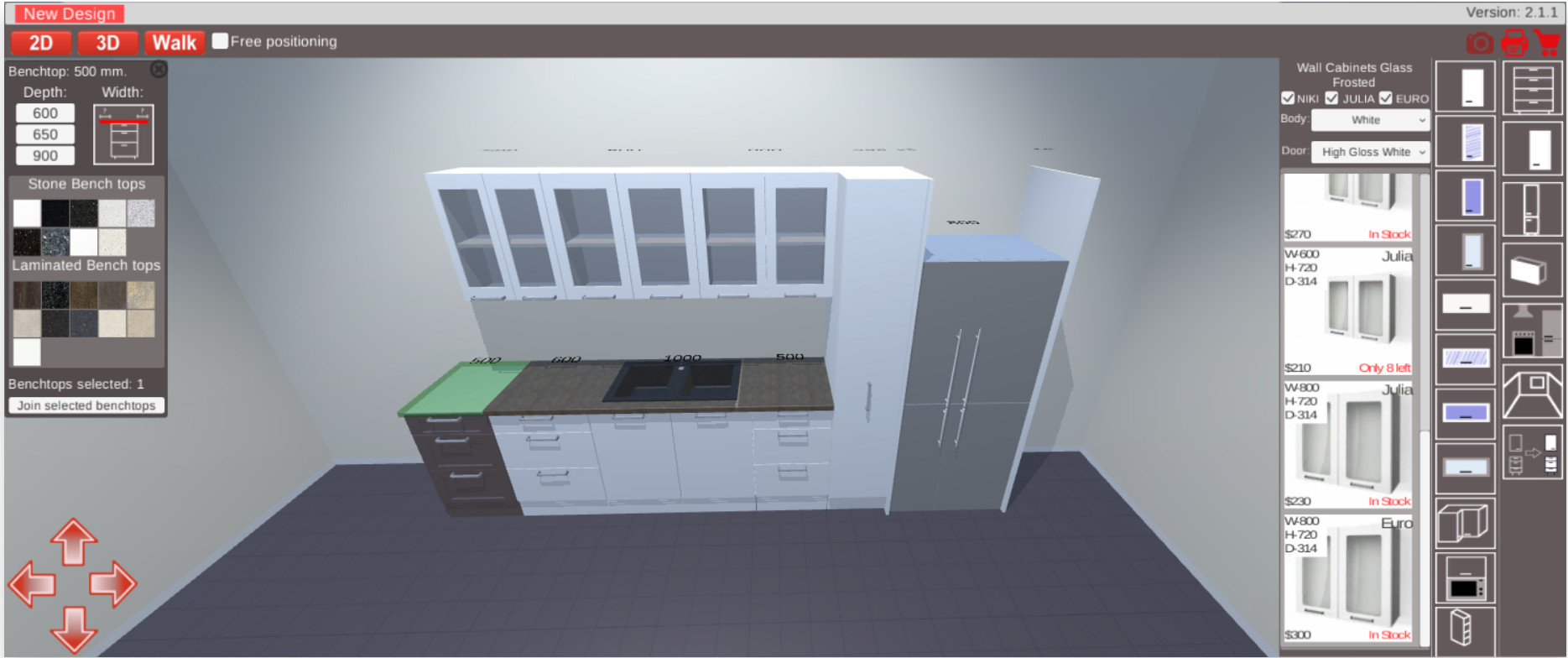

To change the size of a benchtop click on the "Benchtop size" button in the top pop-up menu.
You can save your design during Print or Add to cart processes
To save your design and add it to cart click on the icon in the top panel.

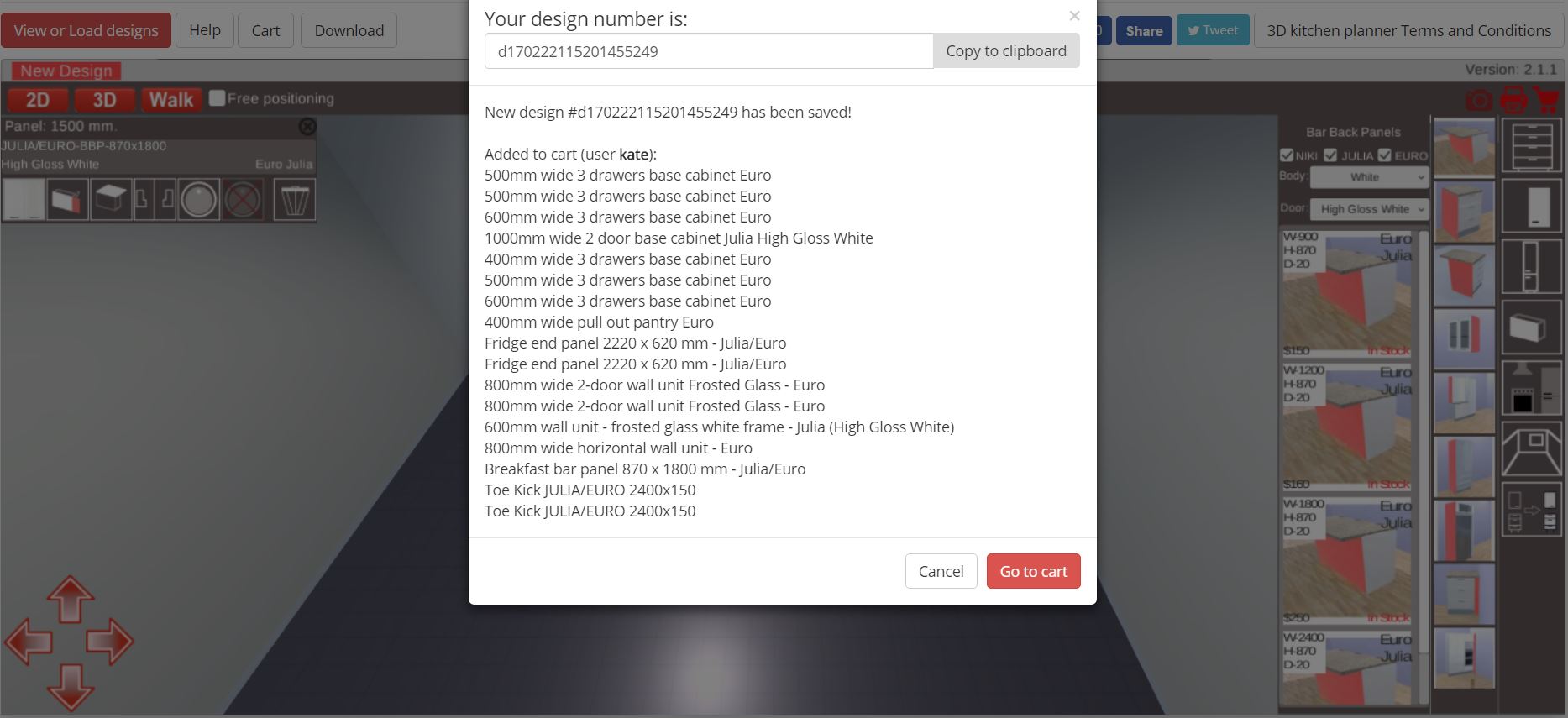

The system will give you a unique design number. This can be entered into to the planner again at a later date so you can edit your design, or you can upload your items into your cart to purchase your kitchen cabinets directly.

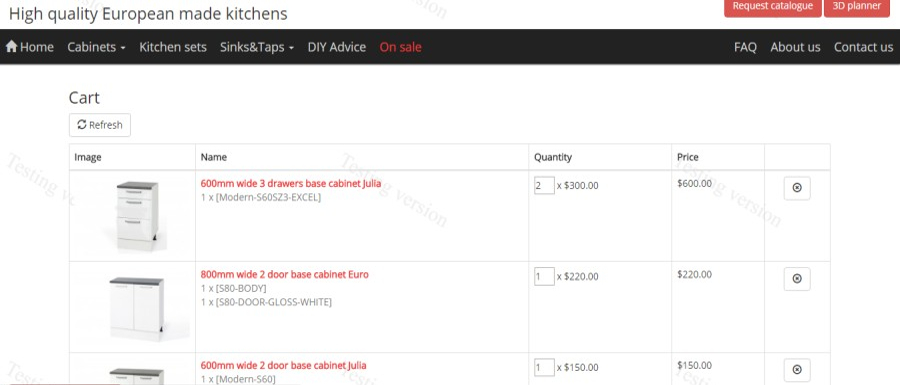

After that, you can go to cart to see the loaded products by clicking "Go to cart" button. Your cart will then be opened in a new window.
To save a PDF file of your plan, click on the icon in the top panel. Select print on the pop-up window that appears.
A PDF file will be opened in a new window. Make sure you then save this PDF file to your computer.

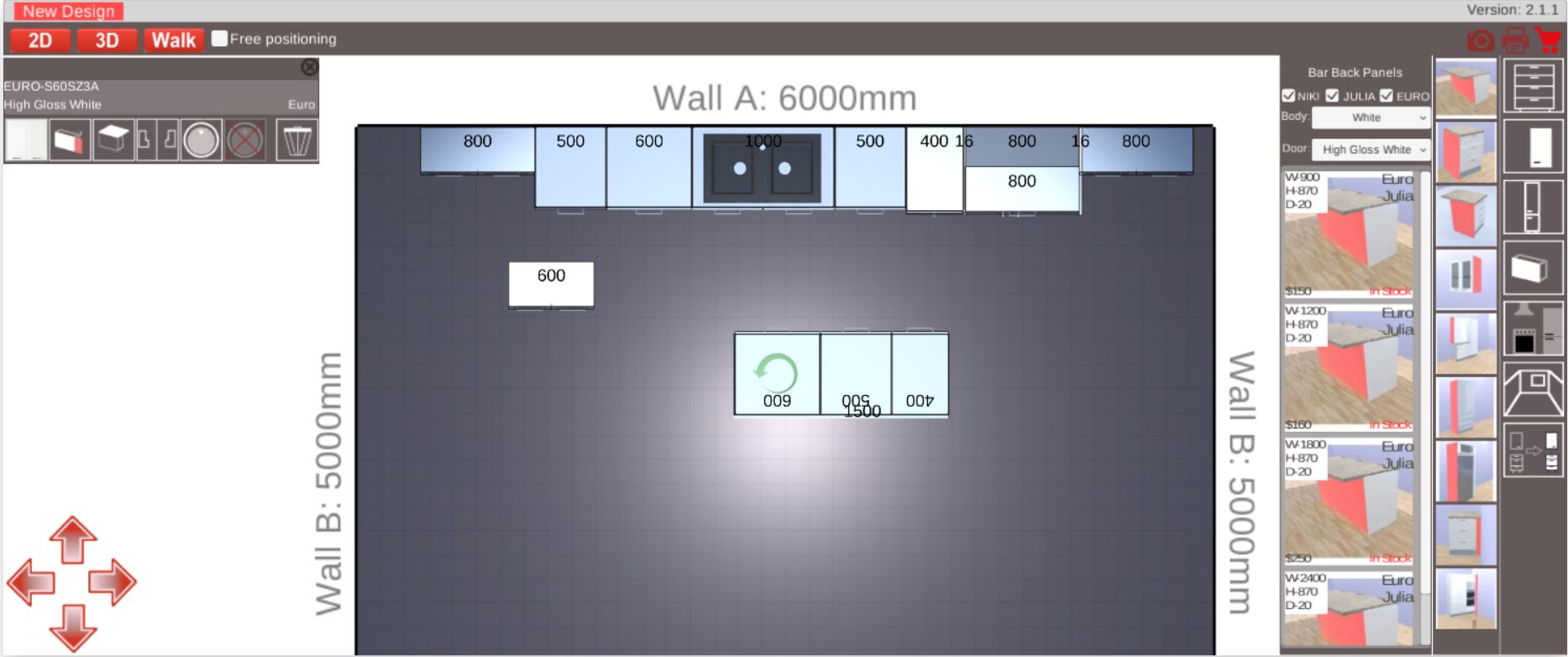

You can work with your design in a 2D or 3D mode, simply click on the or icon in the top panel
You can use the walk mode to have a walk around your kitchen.
To take screenshots of your design, go into "Walk mode" and click on the icon. Then set your desired view for your screenshot and take your picture. Your screenshot will then be downloaded onto your computer.
In order to launch 3D Kitchen design free tool your machine has to meet the following sytem requirements.
- Windows 7/8/10 (64-bit OS required)
- Modern web-browser with support of WebGL technology (Last versions of Google Chrome, Firefox, Safari)
- Please make sure that the web-browser is 64-bit based as well
- 4GB RAM
- NVIDIA/AMD Radeon video card 512MB or equivalent
- For better performance, please do not launch 3D Planner in multiple tabs
3D Planner Beginner Tutorial videos
3D Planner Beginner Tutorial - Part 1: Creating a
3D Planner Beginner Tutorial - Part 2: Moving and Rotating the Camera
3D Planner Advanced Tutorial videos
3D Planner Advanced Tutorial: Creating Windows and Doors
3D Planner Advanced Tutorial: Adding Sinks and Appliances
Select/Upload existing design
Or have a look at the designs which we made for you:
